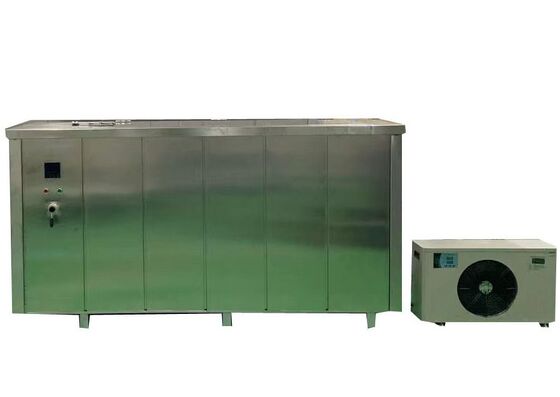

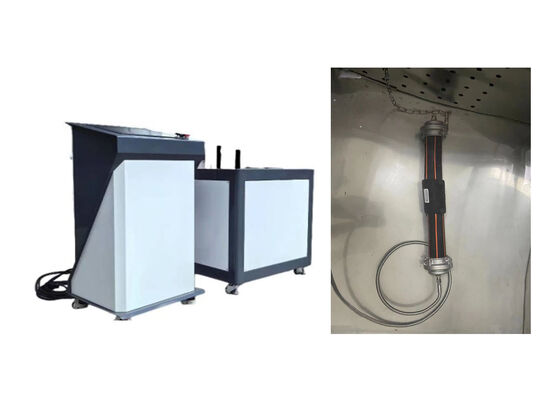

Hydrostatic Pressure Testing Machine
Built to deliver precise pressure control and detailed test data for control teams, this hydrostatic pressure testing machine ensures operational excellence in quality assurance processes.
Applications
This hydrostatic pressure testing machine boasts broad applicability across diverse product testing scenarios, primarily engineered for evaluating thermoplastic pipes utilized in water supply and drainage systems, heating systems, and other industrial settings.
It is particularly valuable in the construction sector, serving as a critical quality assurance tool to uphold the quality, safety, and reliability of pipes integrated into buildings and critical infrastructure projects.
Product Description
This Hydrostatic Pressure Testing Machine is equipped with overpressure and overtemperature safety protection systems, which guarantee operational safety during the entire testing process. The overpressure protection automatically and promptly cuts off the water inlet supply when the pressure exceeds the preset threshold, while the overtemperature protection shuts down the heating power supply immediately once the temperature surpasses the set value—effectively mitigating operational risks.
Holding CE and ISO certifications, the machine validates its superior quality, reliability, and full compliance with international industry standards. With a test accuracy of -1% to +2%, it delivers precise, repeatable test data for consistent quality evaluation. Boasting a wide testing pressure range of 0-16 MPa, it covers diverse plastic pipe specifications to meet multi-scenario testing needs.
Whether you operate in plastic pipe manufacturing, quality inspection, or third-party testing sectors, this Plastic Pipe Hydrostatic Pressure Testing Machine serves as a premium solution for hydrostatic pressure testing of plastic pipes. Its robust safety protection, international certifications, high accuracy, and broad pressure range make it an indispensable asset for any facility handling PPR, PB, PERT, and other thermoplastic pipes across various specifications.
Key Features
| Parameter |
Details |
| Product Name |
Hydrostatic Pressure & Burst Testing Machine |
| Test Accuracy |
-1% to +2% |
| Displayed Test Curves |
Pressure-Time & Pressure-Temperature |
| Test Temperature Range |
15-95 °C |
| Test Pressure Range |
0-16 MPa |
| Application Scope |
Applicable to hydrostatic pressure and burst testing of PE, PVC, PPR, PB, PERT, and other thermoplastic pipes and fittings across various specifications |
Compliance Standards
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters
| Parameter |
Specification |
| Model |
XGY-16C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable) |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC storage |
| Print mode |
Color printer output |
| Test pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| End caps models |
from Φ8 to 1800mm |
| Water tank size |
according to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or others |
Frequently Asked Questions
Q1: What is the brand and manufacturing location of the Plastic Pipe Hydrostatic Pressure Testing Machine?
A1: The machine is branded JHH and manufactured in Beijing, China—backed by years of expertise in testing instrument engineering.
Q2: What is the core purpose of this Hydrostatic Pressure Testing Machine?
A2: It is specifically designed to evaluate the hydrostatic pressure resistance and burst strength of plastic pipes, ensuring compliance with quality and safety standards.
Q3: Which types of pipes can this machine test?
A3: It is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, PE-X, and other thermoplastic/composite pipe variants.
Q4: What is the accuracy specification of the Hydrostatic Pressure Testing Machine?
A4: The machine features a full-scale accuracy of ±0.1%—guaranteeing precise and reliable test data for quality evaluation.
Q5: What is the maximum test pressure capacity of the machine?
A5: It can achieve a maximum test pressure of 10 MPa, equivalent to 100 bar or 1450 psi—covering most industrial and construction pipe testing requirements.
